Growing arm (GrowingCR + boundary control)

Introduction

The growing arm setup pairs a storage-backed Cosserat rod (GrowingCR) with boundary forcing that acts like a turret at the base of the active segment and discrete growth when the user adds or removes elements. The same idea backs dual-arm demos in the Virtual Field runtime: fixed bases in the world, tracked controller orientation, and buttons to extend or retract the simulated length.

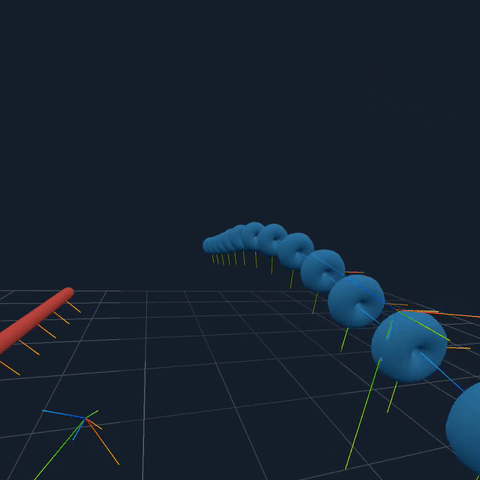

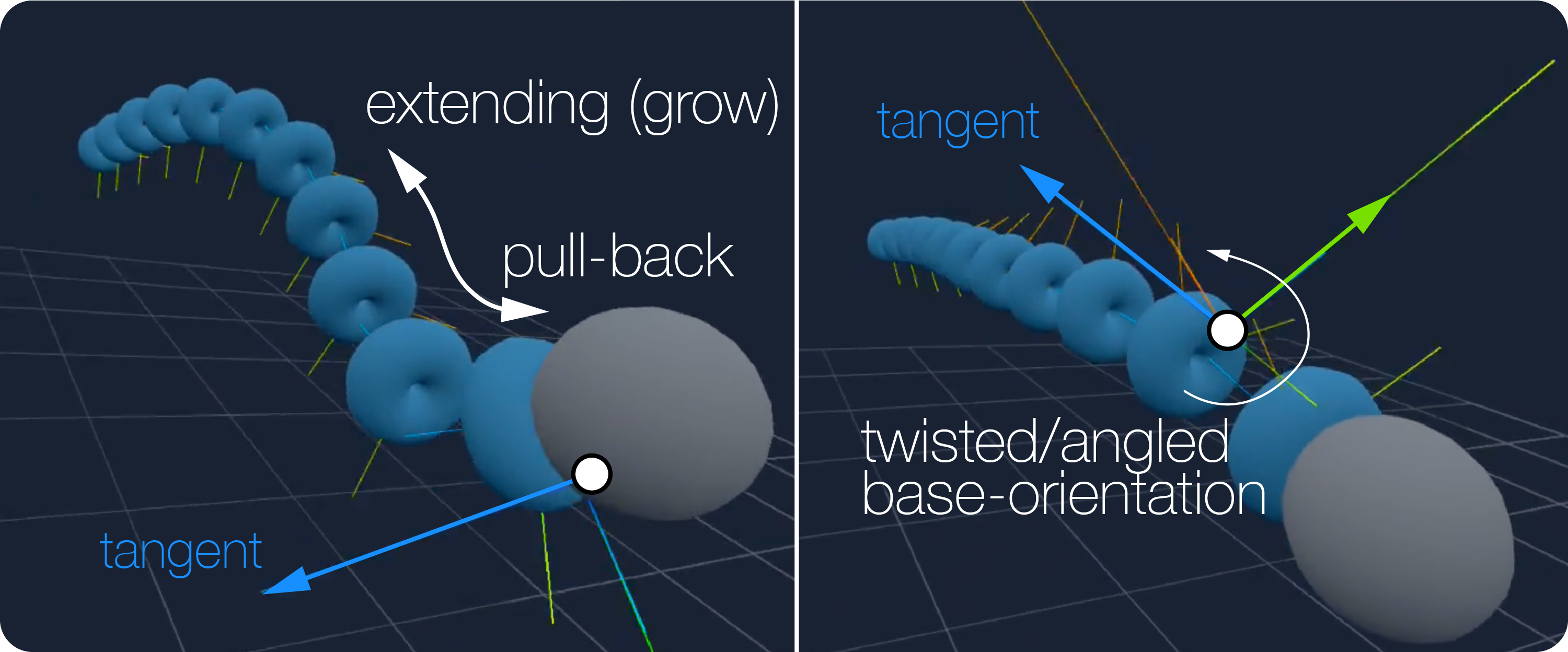

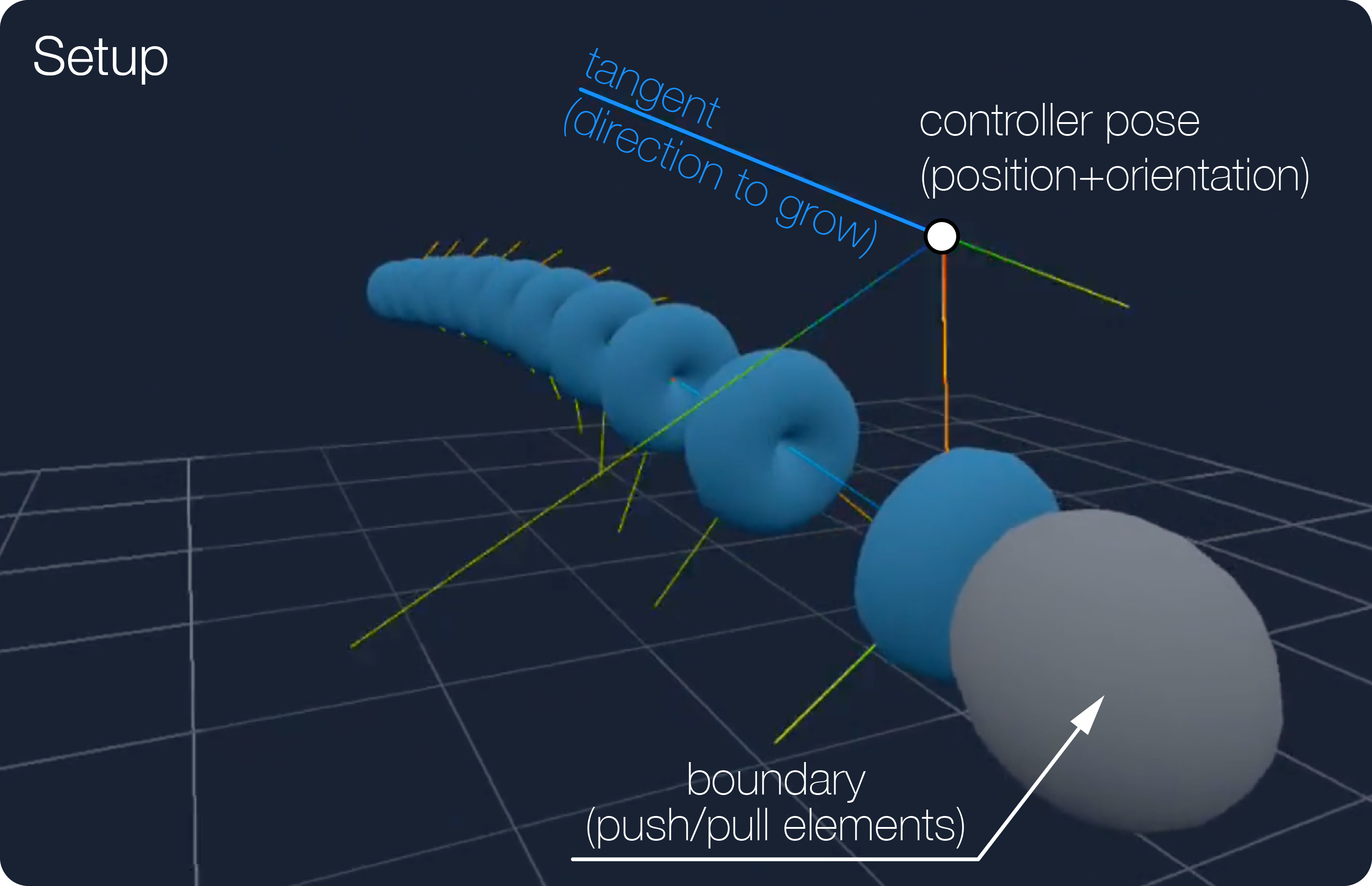

The figures below are taken from that workflow: how the scene is arranged, how targeting maps to the base, and a short loop of growth in VR.

This page explains the mechanism: a fixed-capacity rod where only a suffix of elements is simulated, the rest folded as storage; _GrowingCRBoundaryConditions applies PD at that suffix base and resizes current_elements on triggers.

Mental model: active suffix

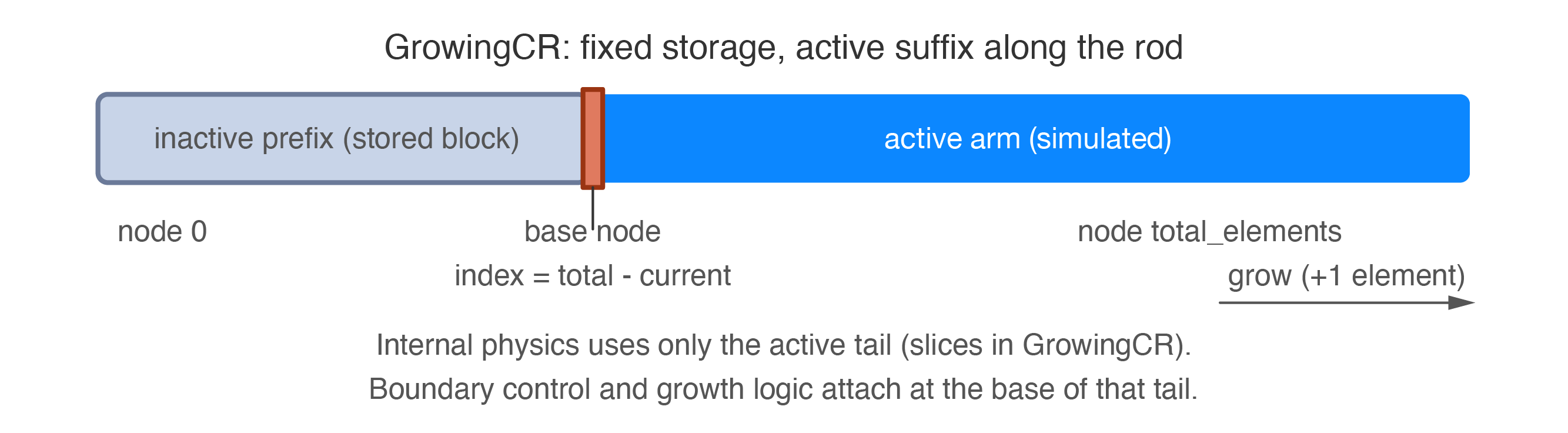

The implementation is GrowingCR in src/virtual_field/runtime/custom_elastica/rods/growing_cr.py. Arrays are allocated for total_elements, but current_elements controls how many elements from the end of the array participate in internal forces, damping, and integration. Equivalently, physics uses slices [-current_elements:] on per-element data and the last current_elements + 1 nodes.

At build time, growing_cr_allocate lays out a straight rod so the inactive prefix sits near the base and the active segment points along the desired direction; the base of the simulated arm is the first node of the active suffix, at index total_elements - current_elements.

What _GrowingCRBoundaryConditions does

The class in src/virtual_field/runtime/custom_elastica/boundary_conditions.py subclasses PyElastica’s NoForces and runs each step as forcing on the rod.

1. Turret tracking A callable controller() returns a world-frame rotation matrix (and a position that is currently unused). The base of the active segment is pulled toward a fixed target_position with gain p_linear_value, and its directors are aligned to the controller orientation with gain p_angular_value. The torque uses the rotation vector from the relative rotation (SO(3) logarithm / inverse Rodrigues construction), including a stable branch near π.

2. Growth / shrink Two booleans, trigger_increase_elements and trigger_decrease_elements, request changing current_elements. A short debounce (0.3 s) avoids repeated toggles.

   • Increase (when current_elements < total_elements): increment current_elements, then call _reset_element_kinematics_and_strains on the new base index so the newly exposed segment is snapped to rest length, inherits directors from its neighbor, and clears spurious velocity/angular rates at that joint.

   • Decrease (when current_elements > min_elements): decrement current_elements only; the shorter active prefix leaves the folded storage as-is for the next steps.

3. Ramp (artifact from rest of the PyElastica) ramp_up_time scales both linear and angular efforts by min(1, time / ramp_up_time) so startup does not impulse the rod (in typical setups ramp_up_time is chosen very small).

Together, this replaces a classical fixed base constraint: the base moves with the user’s aim while the arm length changes on discrete button edges.

Example wiring

TwoGCRSimulation (src/virtual_field/runtime/two_gcr_simulation.py) builds two GrowingCR rods with total_elements = 5 * n_elem and current_elements = n_elem, then attaches _GrowingCRBoundaryConditions with:

• target_position at each arm’s fixed base in the scene,

• controller returning the tracked controller pose for that arm,

• primary button: decrease length,

• secondary button: increase length (edge-triggered in handle_commands).

That pairing is one concrete UX; the boundary class only needs the triggers and controller you provide.
